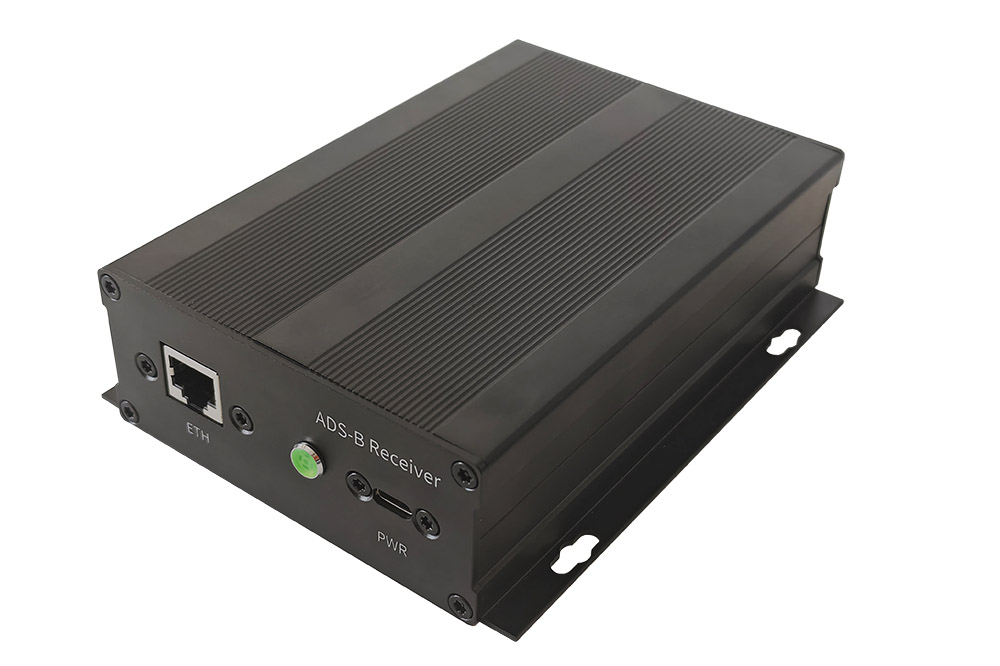

The ADSBR103 is an RTCA DO-260B/DO-260C compliant ADS-B ground receiver. Featuring an integrated ADS-B signal processing module, the device provides output of ADS-B raw messages over an RJ45 network interface.
It can be applied in civil aviation flight tracking, airport management, general aviation aircrafts surveillance, Detect-and-Avoid (DAA) subsystem, ADS-B IN capability for UAS situational awareness, radar calibration, academic research and education.
|
No. |
Specifications |
|
|---|---|---|
|
1 |
Power Supply |
DC 5V 2A |
|
2 |
Power Consumption |
3W |
|
3 |
Reception Frequency |
1090MHz |
|
4 |
Sensitivity |
≤ -90dBm |
|
5 |
Reception Range |
> 300km (no interference, unobstructed) |
|
6 |
Data Format |
ADS-B raw messages |
|
7 |
Data Interface |
RJ45 network port |
|
8 |
Network Connection |
Static IP or DHCP |
|
9 |
Network Protocol |
TCP |
|
10 |
ADS-B Antenna Interface |
SMA female |
|
11 |
Dimensions |
144*113*40mm (main body) |
|
12 |
Weight |
435g |
|

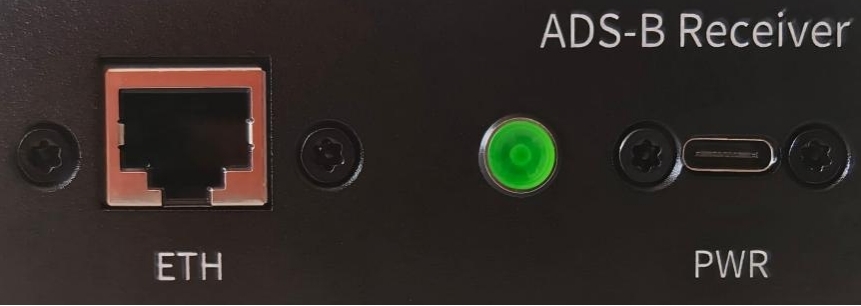

No. |
Interface Name |
Interface Function |
|---|---|---|
|
1 |
PWR |
Power supply indicator |
|
2 |

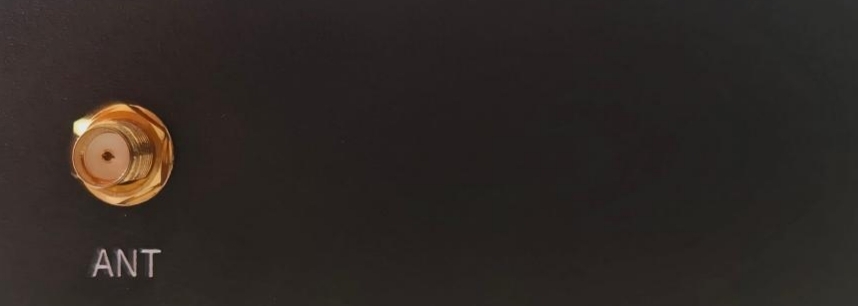

ANT |
ADS-B antenna interface, SMA female |
|
3 |
ETH |
Data Interface, RJ45 |
The default IP address of the ADSBR103 is 192.168.10.10. It must be connected to a computer via the network port, either directly or through a router.
ADSBR103 can be connected to the free display software adsbScope.
All our products can be supplied tailored to your specific needs and customized with your brand and logo. We tailor designs, enclosures, features, and data formats to meet your specifications. Our OEM services empower you to launch unique products swiftly and risk-free.
Comprehensive product range to meet users’ needs for various levels of ADS-B ground station systems.
Easy installation and use, with no complex configuration or high technical requirements for engineers. Simple and user-friendly.
Complete after-sales service, providing technical support and services to help users maximize product benefits.
Support for remote upgrades, assisting users in accessing the latest product features.
Independent product development with customization options based on user requirements, including form factors, logo, software, hardware, performance, and functionality.
