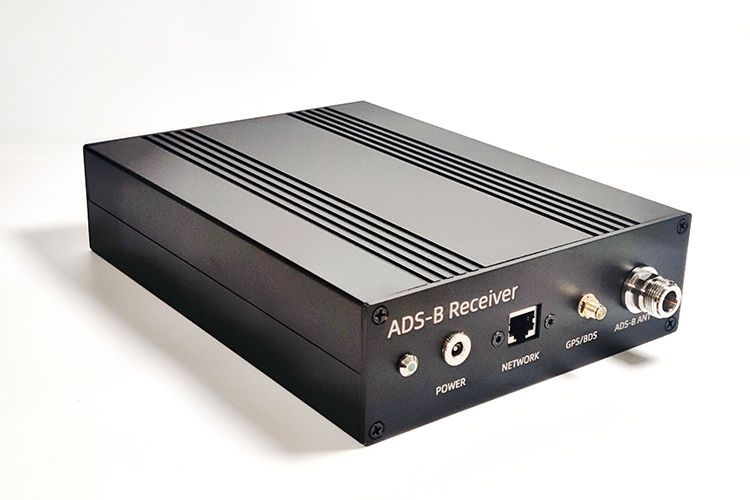

The ADSBR502 is an industrial-grade ADS-B ground receiver designed to provide stable ADS-B data services for high-reliability scenarios. Equipped with a high-performance receiving and processing module, it outputs ADS-B raw messages, CSV plain-text data, and JSON track data via an RJ45 Ethernet port. It is suitable for complex environments in civil aviation, general aviation, and low-altitude airspace supervision.
With the ADSBR502, customers gain access to valuable, customizable tracking capabilities tailored to a wide range of operational needs, including:
· Enhanced situational awareness across airfield, apron, and terminal areas.
· Airport surface movement monitoring and vehicle tracking.
· Support for low-altitude operations such as helicopter missions, flight · chool tracking, wind farm monitoring, and offshore/onshore oil and gas platform oversight.
· UAV and drone tracking.
· Monitoring of aircraft noise in airport vicinities.
· Supports calibration of radar and navigation systems.
· Search and rescue operations in mountainous regions and valley surveillance.
· Applications in defense and electronic intelligence.
· Coordination of integrated vessel and helicopter operations.
The ADSBR502 ADS-B receiver system is capable of processing various types of ADS-B messages, including airborne and surface messages from civil aviation aircraft, general aviation aircraft, UAVs, as well as airport vehicle messages. This enables comprehensive surveillance of civil aviation aircraft, general aviation aircraft, UAVs, and airport vehicles equipped with ADS-B devices.
|
No. |
Specifications |
|
|---|---|---|
|
1 |
Power Supply |
DC 12V 2A |
|
2 |
Power Consumption |
4W |
|
3 |
Reception Frequency |
1090MHz |
|
4 |
Sensitivity |
≤ -97dBm |
|
5 |
Reception Range |
> 400km (no interference, unobstructed) |
|
6 |
Dynamic Range |
≥ 80 dB |
|
7 |
Update Rate |
≥ 1 Hz |
|
8 |
Target Capacity |
> 700 targets |
|
9 |
Processing Capability |
> 3,500 /s |
|
10 |
Time stamp accuracy |
50ns |
|
11 |
Data Format |
DF 17/18/19 and other DF raw message |
|
12 |
Data Interface |
RJ45 network port |
|
13 |
Network Connection |
Static IP or DHCP |
|
14 |
Network Protocol |
TCP/UDP |
|
15 |
ADS-B Antenna Interface |
SMA female |
|
16 |
GPS/BDS Antenna Interface |
SMA female |
|
17 |
Dimensions |
220*160*72mm (main body) |
|
18 |
Weight |
1260g |
|
19 |
Operating Temperature |
-20℃ ~ +60℃ |
|
20 |
Storage Temperature |
-20℃ ~ +70℃ |
|
21 |
Storage Humidity |
10% ~ 80% |
|

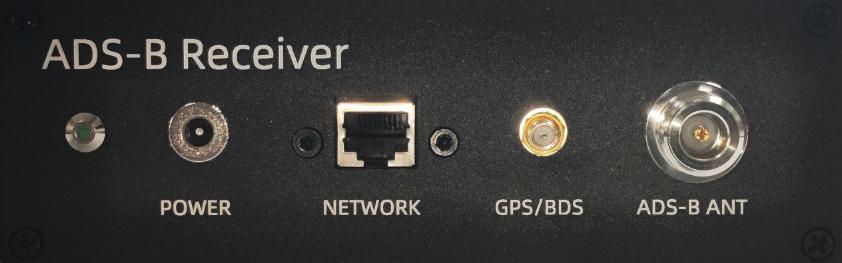

No. |
Interface Name |
Interface Function |
|---|---|---|
|
1 |
POWER |
Power supply interface for main unit, DC 12V 2A |
|
2 |
NETWORK |
Data Interface, RJ45 |
|
3 |
GPS/BDS |
GPS/BDS antenna interface, SMA female |
|
4 |
ADS-B ANT |
ADS-B antenna interface, N female |
· ADSBR502 supports multiple output message formats: CSV plain text (decoded data, you can easily get longitude, latitude, altitude, speed, flight ID…), JSON (also decoded data), and DF17/DF18/DF19 as well as other DF raw messages.
· ADSBR502 can output data with GPS timestamp.
· ADSBR502 can be connected via network cables.
· ADSBR502 IP address can be configured for direct connection with a computer without the need for routers. However, ADSBR502 can also be configured to connect with a computer via routers, offering flexibility based on your setup preferences.
· ADSBR502 supports static IP address and DHCP.
· A single ADSBR502 unit can send ADS-B data to multiple clients simultaneously, enabling efficient data distribution across multiple devices or systems.
· ADSBR502 is a portable ADS-B receiver.
· Optional: Data transmission via 4G/5G module.
· Optional: Output of ADS-B signal strength in dBm, which can be used for measuring propagation environment.
The default IP address of the ADSBR502 is 192.168.10.10. It must be connected to a computer via the network port, either directly or through a router.
ADSBR502 can be connected to the free display software adsbScope.
All our products can be supplied tailored to your specific needs and customized with your brand and logo. We tailor designs, enclosures, features, and data formats to meet your specifications. Our OEM services empower you to launch unique products swiftly and risk-free.
Comprehensive product range to meet users’ needs for various levels of ADS-B ground station systems.
Easy installation and use, with no complex configuration or high technical requirements for engineers. Simple and user-friendly.
Complete after-sales service, providing technical support and services to help users maximize product benefits.
Support for remote upgrades, assisting users in accessing the latest product features.
Independent product development with customization options based on user requirements, including form factors, logo, software, hardware, performance, and functionality.
