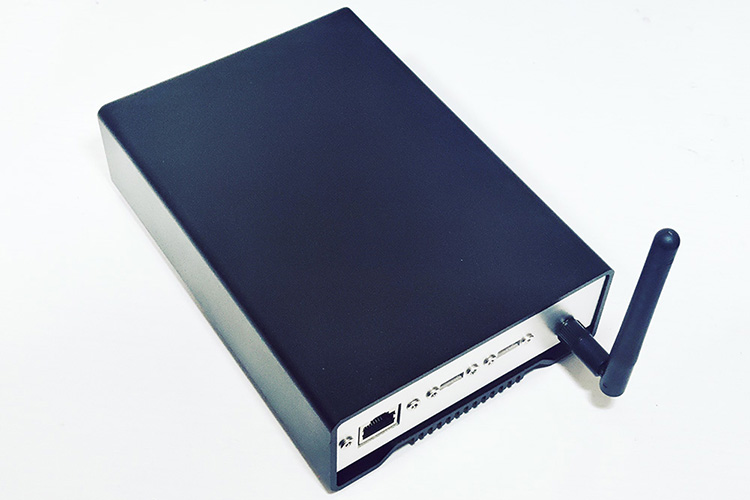

ADSBE500 is a multi-target ADS-B signal simulator that transmits ADS-B signals at 1090MHz, capable of simulating the transmission of ADS-B signals of up to 600 aircrafts. This kind of device is sometimes also called ADS-B signal emulator or ADS-B signal generator.
The ADSBE500 encodes aircraft DF17 messages and transmit the messages for reception and decoding by other ADS-B receivers. ADSBE500 can be used in research and development departments for verifying and stress-testing the reception and decoding functionality of ADS-B receivers, setting up demonstration and verification environments for ADS-B systems in laboratories, as well as conducting performance and stress tests for ADS-B display software, among other applications.
|
No. |
Specifications |
|
|---|---|---|
|
1 |
Frequency |
1090MHz |
|
2 |
Number of Simulated Targets |
≤ 600 |
|
3 |
Transmit Power |
≥ -20dBm (adjustable before leaving factory) |
|
4 |
Processing Capacity |
≥1500 messages per second |
|
5 |
Processing Delay |
<1mS |
|
6 |
ADS-B Data Format |
DF17 |
|
7 |
Power Consumption |
2W |
|
8 |
Input Voltage |
DC 5V |
|
9 |
Antenna Connector |
SMA female |
|
10 |
Configuration Port |
RJ45 |
|
11 |
Physical Size |
170*120*46 mm |
Due to the fact that ADSBE500 will emit standard ADS-B signals, these signals can be received by ADS-B receivers. Although the transmission power is very low, there is still a possibility of being received by nearby ADS-B receivers.
Therefore, it is recommended that users do not use ADSBE500 outside. Instead, you can connect the ADS-B simulator to the tested ADS-B receiver using a cable with an attenuator. If users must transmit the ADS-B signal into air (for example, when testing multiple receivers simultaneously), it is advisable to conduct the test inside a room, as far as you can away from windows and minimize the transmission time.
All our products can be supplied tailored to your specific needs and customized with your brand and logo. We tailor designs, enclosures, features, and data formats to meet your specifications. Our OEM services empower you to launch unique products swiftly and risk-free.
We welcome users, integrators, and distributors to contact us.
